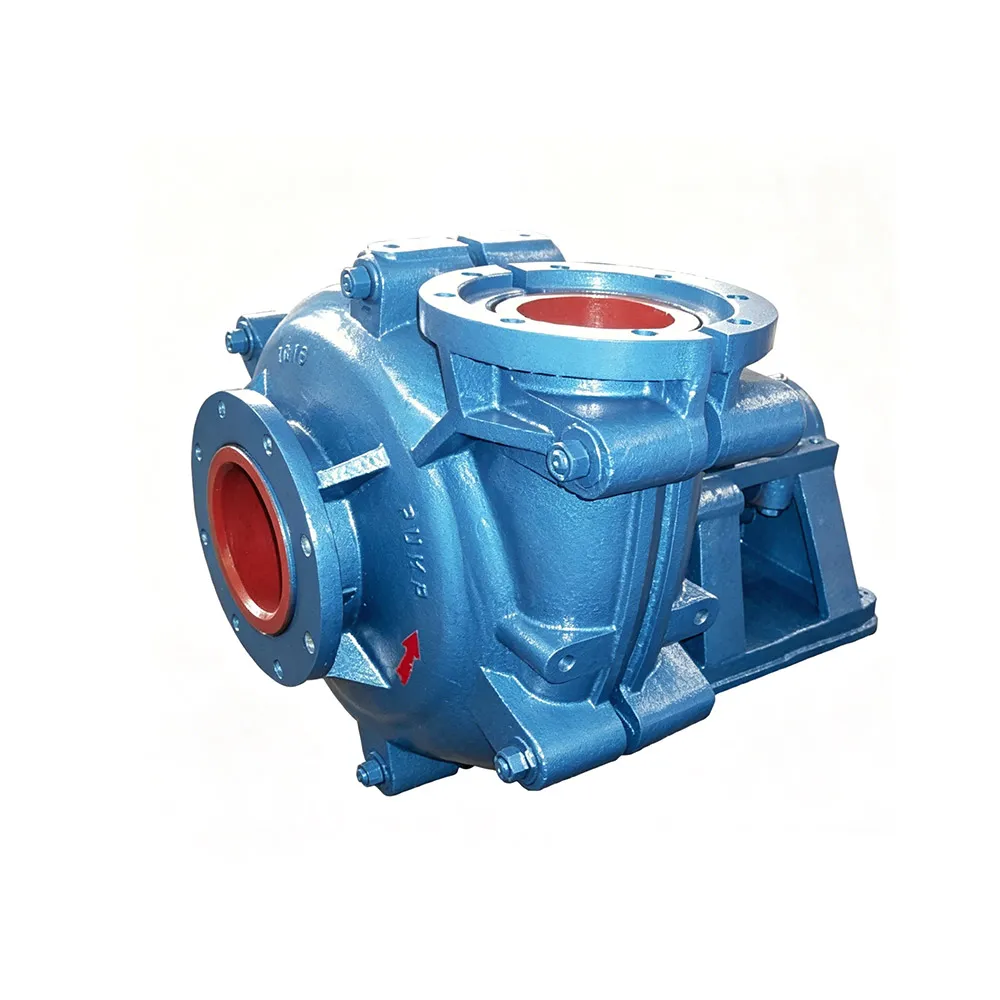

DM(R) Series Slurry Pumps

Main Parameter:

Size: 25~650mm

Capacity: 2~9500m³/h

Head: 5 ~ 55m (Single Stage)

Main Parameter:

Size: 25~650mm

Capacity: 2~9500m³/h

Head: 5 ~ 55m (Single Stage)

Product Details

Feature

 Double casing construction. It has a character of high efficiency, wear-resistance, stable performance and excellent interchangeability. The material of the liner and impeller is made of wear-resistant metal or rubber, and the discharge branch can be positioned at 8 different positions at an interval of. The pumps may be installed in multiple stages in series, and may be driven by a belt or a direct coupling. The seal of the shaft may be adoptable of a gland seal, expeller seal, or mechanical seal. The pump should be rotated counterclockwise, viewing from the driving end.



Application

The pumps are suitable for delivering middle, low head duty in metallurgical, mining, coal, and power industries, etc, for example, delivering slurry in mining, metallurgical, power plant, steel mill, and chemical industries, etc.

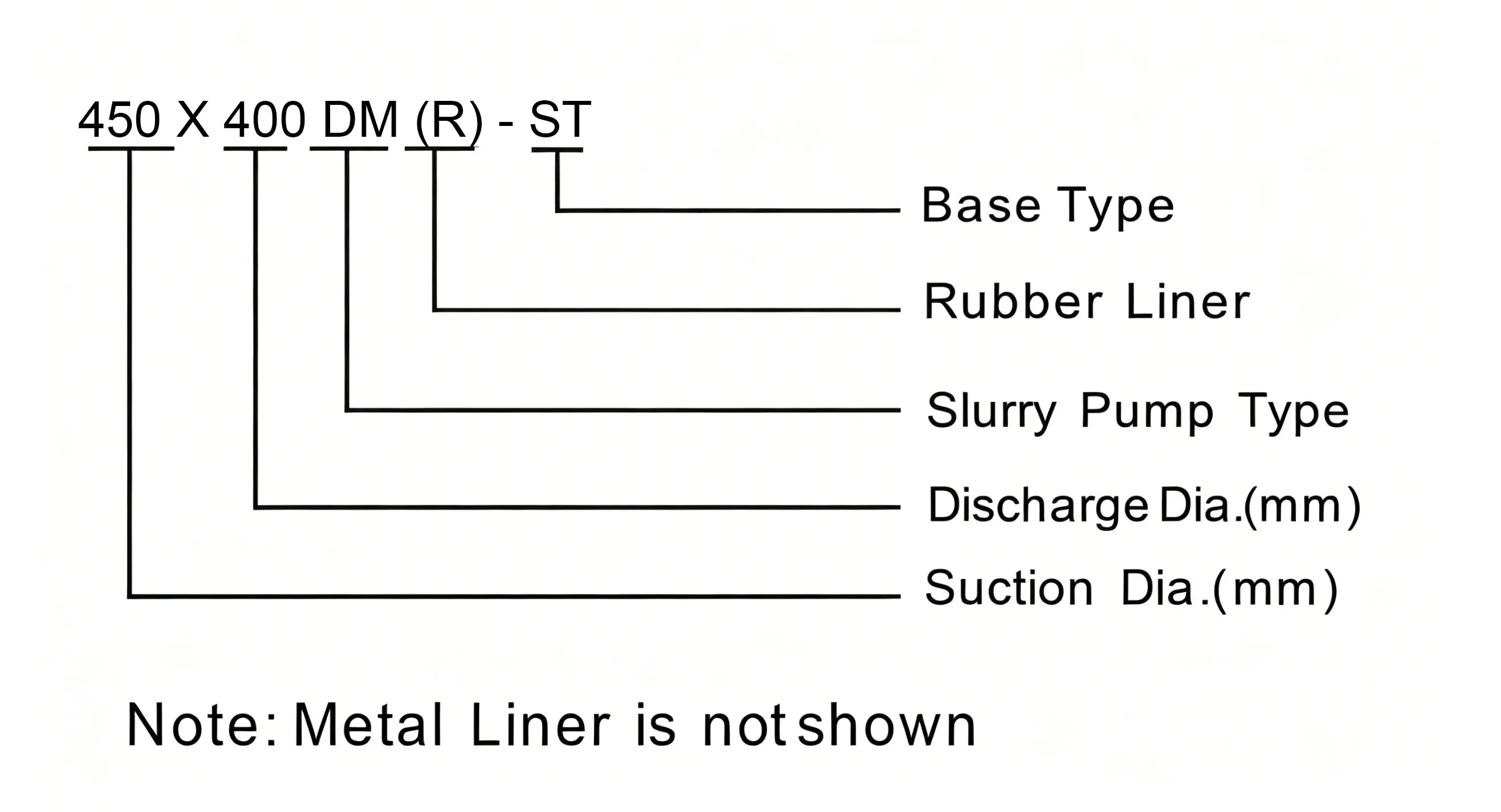

Model Implication

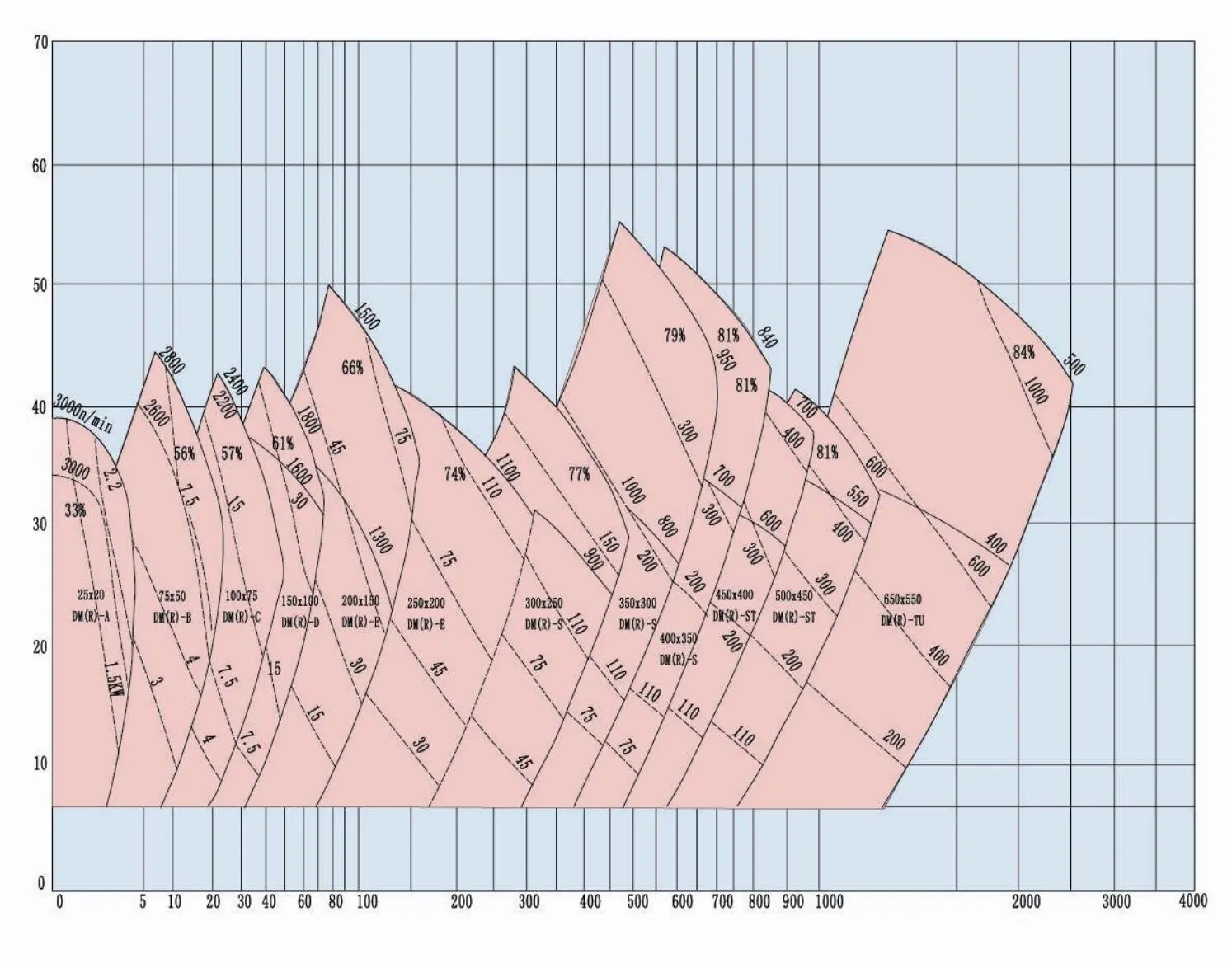

Selection Chart of Type DM(R) Slurry Pump



Performance Parameter of Type DM(R) Slurry Pump

Type AllowableMating Max.Power (kW) Material Clear Water Performance Impeller
Liner Impeller Capacity (Q) Head (H) Speed (n) Max.Eff. NPSHr No.of Impeller
(m3/h) (l/s) (m) (r/min) (%) (m) Vanes Dia.(mm)
25X20DM-A 7.5 M M 2.34~10.8 0.65~3 6~37 1400~3000 30 - 4 152.4
75X50DM-B 15 M M 16.2~76 4.5~20 9~44 1400~2800 55 - 4 190
100X75DM-C 30 M M 18~151 5~42 4~45 900~2400 57 - 4 229
150X100DM-D 60 M M 50~252 14~70 7~46 800~1800 60 2~3.5 4 305
200X150DM-E 120 M M 115~486 32~135 12~51.5 800~1500 65 2~6 4 381
250X200DM-E 120 M M 234~910 65~253 9.5~40 600~1100 64 3~6 4 457
300X250DM-S 120 M M 396~1425 110~396 8~30 500~800 77 2~10 5 550
350X300DM-S 560 M M 468~2538 130~705 8~60 400~950 79 2~10 5 653
400X350DM-S 560 M M 650~2800 180~780 10~59 400~840 81 3~10 5 736
450X400DM(R)-ST 560 M M 720~3312 200~920 7~51 300~700 80 2~10 5 825
M M 756~3312 210~920 7~37.5 6300~600 85 2~8
500X450DM(R)-ST 560 M M 1008~4356 280~1210 9~48 300~600 80 2~9 5 933
RU RU 1080~4356 300~1210 9~40 300~550 87 3~10
650X550DM(R)-TU 1200 M M 1980~7920 560~2200 10~50 250~475 86 4~10 5 1213
RU RU 1980~7920 700~2530 10~50 250~475 86 4~10
Note:

1."M": alloy wear-resistant material, "RU": rubber.

2.Capacity range recommend:50%Q'≤Q≤110%Q'(Q'≈appropriate to capacity at highest efficiency point).

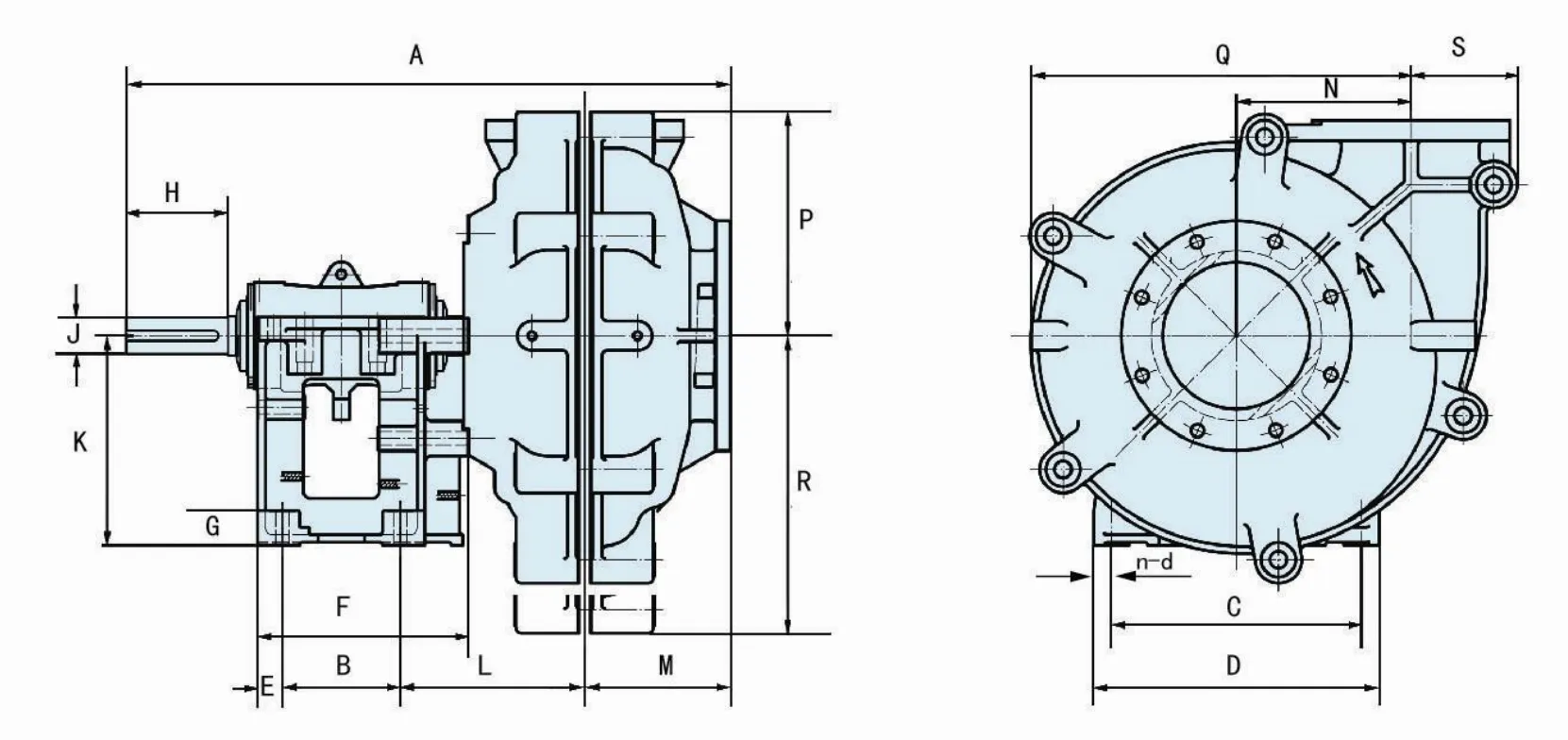

Outline and Installation Dimension of Type DH(R) Slurry Pump

Type Outline Dimension(mm)
A B C D E F G n-d H J K L M N
25X20DM-A 461 159 241 286 25 210 28 4-φ18 57 20 145 89 90 86
75X50DM-B 642 143 254 295 24 248 38 4-φ14 80 28 197 191 136 114
100X75DM-C 813 175 356 406 32 311 48 4-φ19 120 42 254 253 163 146
150X100DM-D 950 213 432 492 38 364 64 4-φ22 163 65 330 280 187 190
200X150DM-E 1218 257 546 622 54 448 76 4-φ29 220 80 457 376 237 248
250X200DM-E 1334 257 546 622 54 448 76 4-φ29 220 80 457 413 306 292
300X250DM-E 1406 490 560 680 50 590 70 4-φ28 216 85 350 322 324 438
350X300DM-S 1720 640 760 920 70 780 90 4-φ35 280 120 450 415 300 475
400X350DM-S 1776 640 760 920 70 780 90 4-φ35 280 120 650 425 340 530
450X400DM(R)-ST 1840 620 900 1150 80 780 125 4-φ48 280 120 650 480 375 600
500X450DM(R)-ST 1875 620 900 1150 80 780 125 4-φ48 280 120 650 500 400 660
650X550DM(R)-TU 2400 860 1200 1460 95 1050 150 4-φ79 350 150 900 625 500 860

Type Pump Head Dimension(mm) Intake Flange Dimension(mm) Discharge Flange Dimension(mm)
S Q R P O.D. I.D. C-C.BET.Holes Holes O.D. I.D. C-C.BET.Holes Holes
25X20DM-A 144 — — 128 114 25 83 4-φ14 102 20 73 4-φ14
75X50DM-B - 155 - 163 184 75 146 4-φ19 165 50 127 4-φ19
100X75DM-C 102 — - 204 229 100 191 4-φ19 203 75 165 4-φ19
150X100DM-D 118 - - 262 305 150 260 4-φ22 229 100 191 4-φ22
200X150DM-E 155 - - 324 368 200 324 4-φ19 305 150 260 4-φ19
250X200DM-E 199 - - 401 445 250 394 8-φ22 382 200 337 8-φ22
300X250DM-E 257 476 603 470 552 305 495 8-φ32 483 254 425 8-φ32
350X300DM-S 165 599 634 570 560 350 500 12-φ26 530 300 470 12-φ26
400X350DM-S 295 643 691 620 640 400 580 12-φ26 590 350 530 12-φ26
450X400DM(R)-ST 343 747 809 740 720 450 650 12-φ33 685 400 615 12-φ33
500X450DM(R)-ST 375 814 872 800 770 500 700 12-φ33 740 450 670 12-φ33
650X550DM(R)-TU 453 1055 1142 975 975 650 880 12-φ39 900 350 800 12-φ39

Feature

 Double casing construction. It has a character of high efficiency, wear-resistance, stable performance and excellent interchangeability. The material of the liner and impeller is made of wear-resistant metal or rubber, and the discharge branch can be positioned at 8 different positions at an interval of. The pumps may be installed in multiple stages in series, and may be driven by a belt or a direct coupling. The seal of the shaft may be adoptable of a gland seal, expeller seal, or mechanical seal. The pump should be rotated counterclockwise, viewing from the driving end.



Application

The pumps are suitable for delivering middle, low head duty in metallurgical, mining, coal, and power industries, etc, for example, delivering slurry in mining, metallurgical, power plant, steel mill, and chemical industries, etc.



Model Implication



Selection Chart of Type DM(R) Slurry Pump



Performance Parameter of Type DM(R) Slurry Pump

Type AllowableMating Max.Power (kW) Material Clear Water Performance Impeller
Liner Impeller Capacity (Q) Head (H) Speed (n) Max.Eff. NPSHr No.of Impeller
(m3/h) (l/s) (m) (r/min) (%) (m) Vanes Dia.(mm)
25X20DM-A 7.5 M M 2.34~10.8 0.65~3 6~37 1400~3000 30 - 4 152.4
75X50DM-B 15 M M 16.2~76 4.5~20 9~44 1400~2800 55 - 4 190
100X75DM-C 30 M M 18~151 5~42 4~45 900~2400 57 - 4 229
150X100DM-D 60 M M 50~252 14~70 7~46 800~1800 60 2~3.5 4 305
200X150DM-E 120 M M 115~486 32~135 12~51.5 800~1500 65 2~6 4 381
250X200DM-E 120 M M 234~910 65~253 9.5~40 600~1100 64 3~6 4 457
300X250DM-S 120 M M 396~1425 110~396 8~30 500~800 77 2~10 5 550
350X300DM-S 560 M M 468~2538 130~705 8~60 400~950 79 2~10 5 653
400X350DM-S 560 M M 650~2800 180~780 10~59 400~840 81 3~10 5 736
450X400DM(R)-ST 560 M M 720~3312 200~920 7~51 300~700 80 2~10 5 825
M M 756~3312 210~920 7~37.5 6300~600 85 2~8
500X450DM(R)-ST 560 M M 1008~4356 280~1210 9~48 300~600 80 2~9 5 933
RU RU 1080~4356 300~1210 9~40 300~550 87 3~10
650X550DM(R)-TU 1200 M M 1980~7920 560~2200 10~50 250~475 86 4~10 5 1213
RU RU 1980~7920 700~2530 10~50 250~475 86 4~10
Note:

1."M": alloy wear-resistant material, "RU": rubber.

2.Capacity range recommend:50%Q'≤Q≤110%Q'(Q'≈appropriate to capacity at highest efficiency point).



Outline and Installation Dimension of Type DH(R) Slurry Pump

Type Outline Dimension(mm)
A B C D E F G n-d H J K L M N
25X20DM-A 461 159 241 286 25 210 28 4-φ18 57 20 145 89 90 86
75X50DM-B 642 143 254 295 24 248 38 4-φ14 80 28 197 191 136 114
100X75DM-C 813 175 356 406 32 311 48 4-φ19 120 42 254 253 163 146
150X100DM-D 950 213 432 492 38 364 64 4-φ22 163 65 330 280 187 190
200X150DM-E 1218 257 546 622 54 448 76 4-φ29 220 80 457 376 237 248
250X200DM-E 1334 257 546 622 54 448 76 4-φ29 220 80 457 413 306 292
300X250DM-E 1406 490 560 680 50 590 70 4-φ28 216 85 350 322 324 438
350X300DM-S 1720 640 760 920 70 780 90 4-φ35 280 120 450 415 300 475
400X350DM-S 1776 640 760 920 70 780 90 4-φ35 280 120 650 425 340 530
450X400DM(R)-ST 1840 620 900 1150 80 780 125 4-φ48 280 120 650 480 375 600
500X450DM(R)-ST 1875 620 900 1150 80 780 125 4-φ48 280 120 650 500 400 660
650X550DM(R)-TU 2400 860 1200 1460 95 1050 150 4-φ79 350 150 900 625 500 860

Type Pump Head Dimension(mm) Intake Flange Dimension(mm) Discharge Flange Dimension(mm)
S Q R P O.D. I.D. C-C.BET.Holes Holes O.D. I.D. C-C.BET.Holes Holes
25X20DM-A 144 — — 128 114 25 83 4-φ14 102 20 73 4-φ14
75X50DM-B - 155 - 163 184 75 146 4-φ19 165 50 127 4-φ19
100X75DM-C 102 — - 204 229 100 191 4-φ19 203 75 165 4-φ19
150X100DM-D 118 - - 262 305 150 260 4-φ22 229 100 191 4-φ22
200X150DM-E 155 - - 324 368 200 324 4-φ19 305 150 260 4-φ19
250X200DM-E 199 - - 401 445 250 394 8-φ22 382 200 337 8-φ22
300X250DM-E 257 476 603 470 552 305 495 8-φ32 483 254 425 8-φ32
350X300DM-S 165 599 634 570 560 350 500 12-φ26 530 300 470 12-φ26
400X350DM-S 295 643 691 620 640 400 580 12-φ26 590 350 530 12-φ26
450X400DM(R)-ST 343 747 809 740 720 450 650 12-φ33 685 400 615 12-φ33
500X450DM(R)-ST 375 814 872 800 770 500 700 12-φ33 740 450 670 12-φ33
650X550DM(R)-TU 453 1055 1142 975 975 650 880 12-φ39 900 350 800 12-φ39
