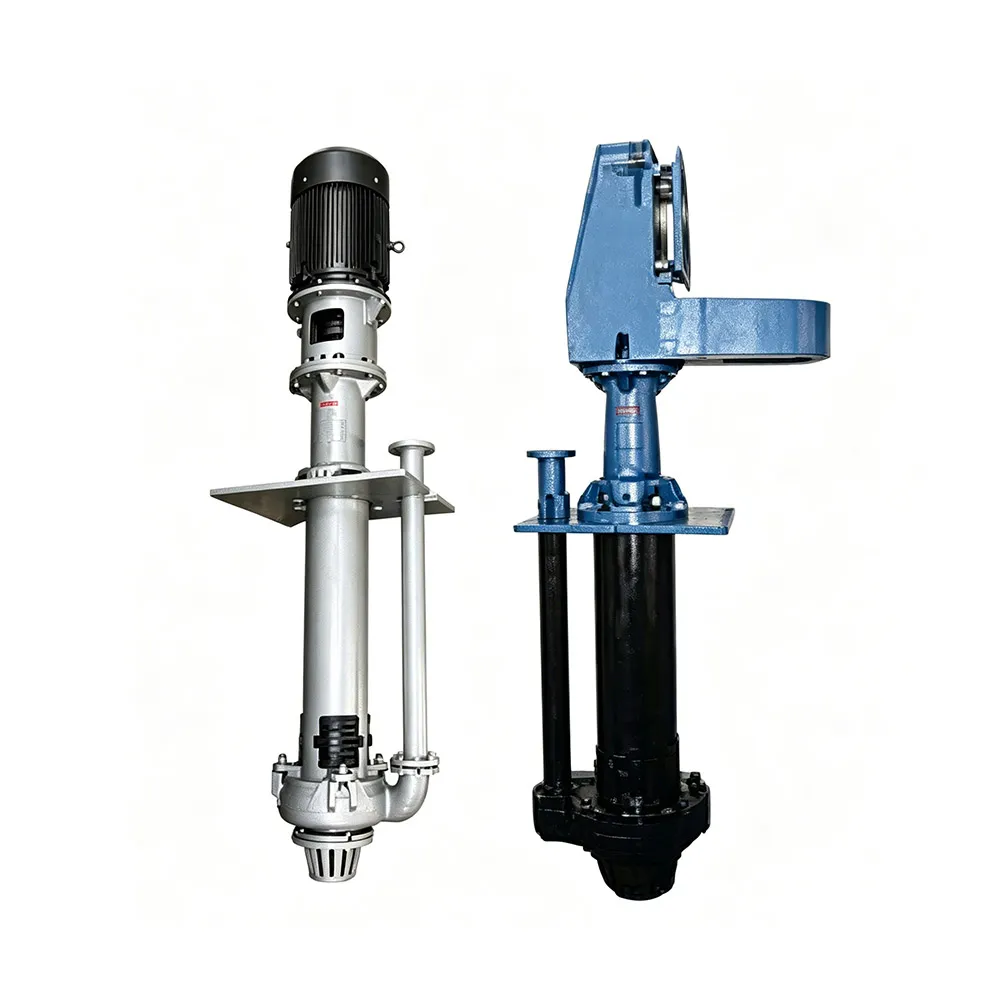

DV(R) Series Sump Pump

Main Parameter:

Size: 40~300mm

Capacity: 12 ~ 1267m³/h

Head: 4~40m

Main Parameter:

Size: 40~300mm

Capacity: 12 ~ 1267m³/h

Head: 4~40m

Previous: No more data
Product Details

Feature

The pumps are vertical cantilever type, single casing, double suction and semi-open impeller design, the impeller is made of high-chromium alloy or rubber, the space may be adjusted between impeller and liner, so that assure the high-efficient operation, the pumps don't need any shaft seal, the wetted parts of pumps are made of rubber and the parts contacting slurry are lined with rubber, the pumps are suitable to delivering strong corrosives slurries. The pumps may be driven by a belt or a direct coupling. The pump should be rotated clockwise, viewing from the driving end.



Application

The pumps are designed for delivering corrosive, coarse particle, and high-density slurries. The pumps are widely used for metallurgy, mining, coal, power plants, building materials, and environmental protection industrial departments, etc.

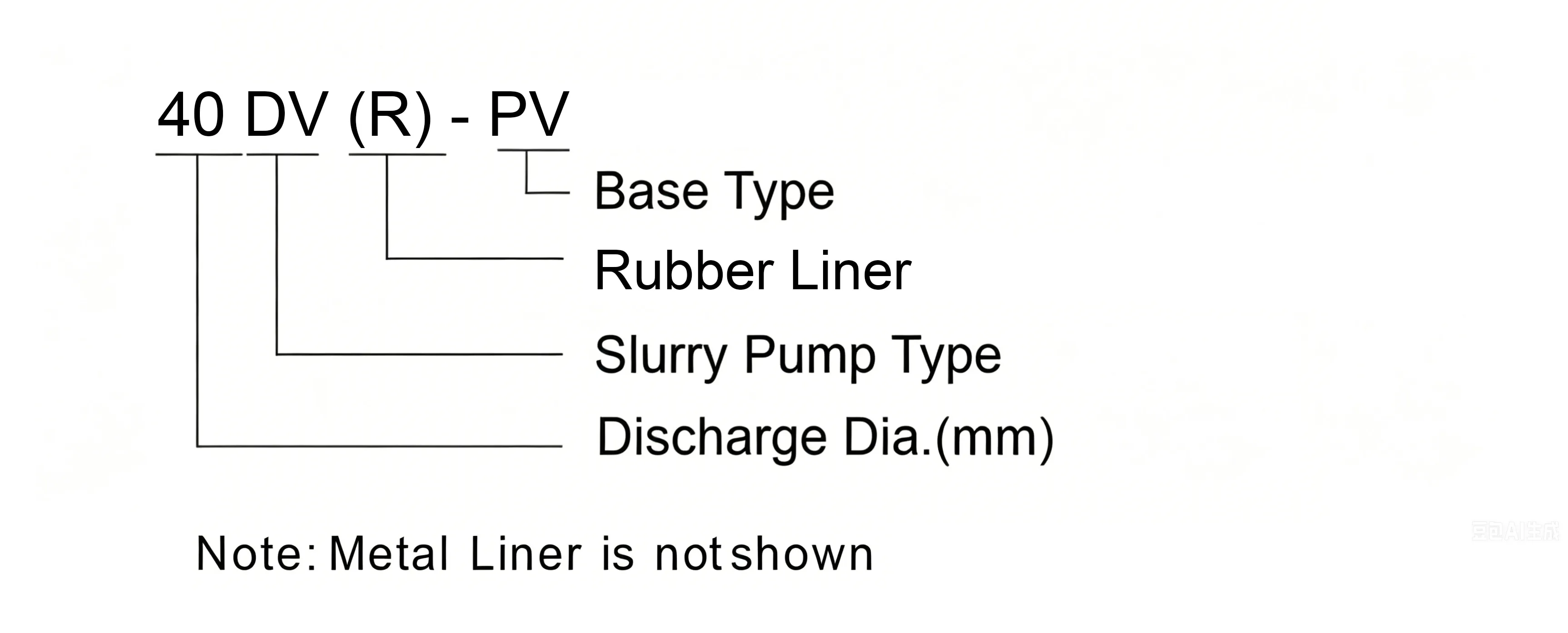

Model Implication

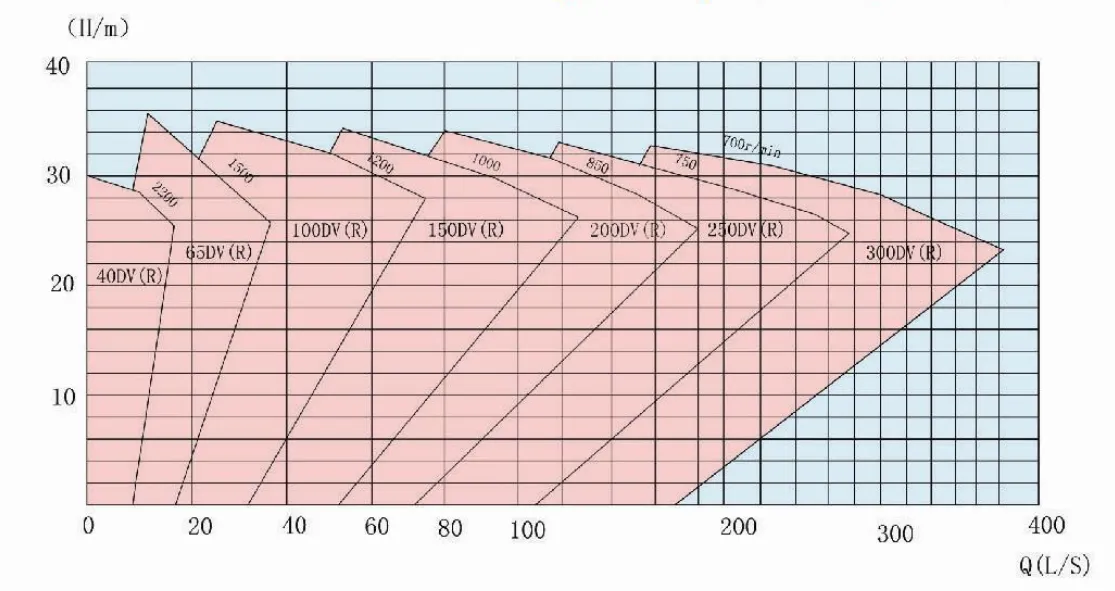

Selection Chart of Type DV(R) Sump Pump





Performance Parameter of Type DV(R) Sump Pump

Type Allowable Mating Max.Power (kW) Material Clean Water Performance Impeller
LinerImpeller Capacity (Q) Head(H) Speed (n) Max.Eff. No. of Vanes ImpellerDia(mm)
(m3/h) (l/s) (m) (r/min) (%)
40(L)DV 15 M M 19~43 5.3~12 4.5~28.5 1000~2200 40 5 188
40(L)DVR R R 18~40 5~11 4~26 1000~2200 40 5 188
65(L)DV 30 M M 23~111 6.4~30.8 5~29.5 700~1500 50 5 280
65(L)DVR R R 23~105 6.4~29 5.5~30.5 500~1200 51 5 280
100(L)DV 75 M M 54~289 15~80 5~35 600~1200 56 5 370
100(L)DVR R R 65~285 18~79 7.5~36 600~1200 62 5 370
150(L)DV 110 M M 108~480 30~133 8.5~40 500~1000 52 5 450
200(L)DV M M 189~891 52.5~247.5 6.5~37 400~850 64 5 520
250(L)DV 200 M M 261~1089 72.5~302.5 7.5~33 400~750 60 5 575
300(L)DV M M 288~1267 80~352 6.5~33 350~700 50 5 610
Note:1. "M": alloy wear-resistant material, "RU": rubber. "L": Extension Type.

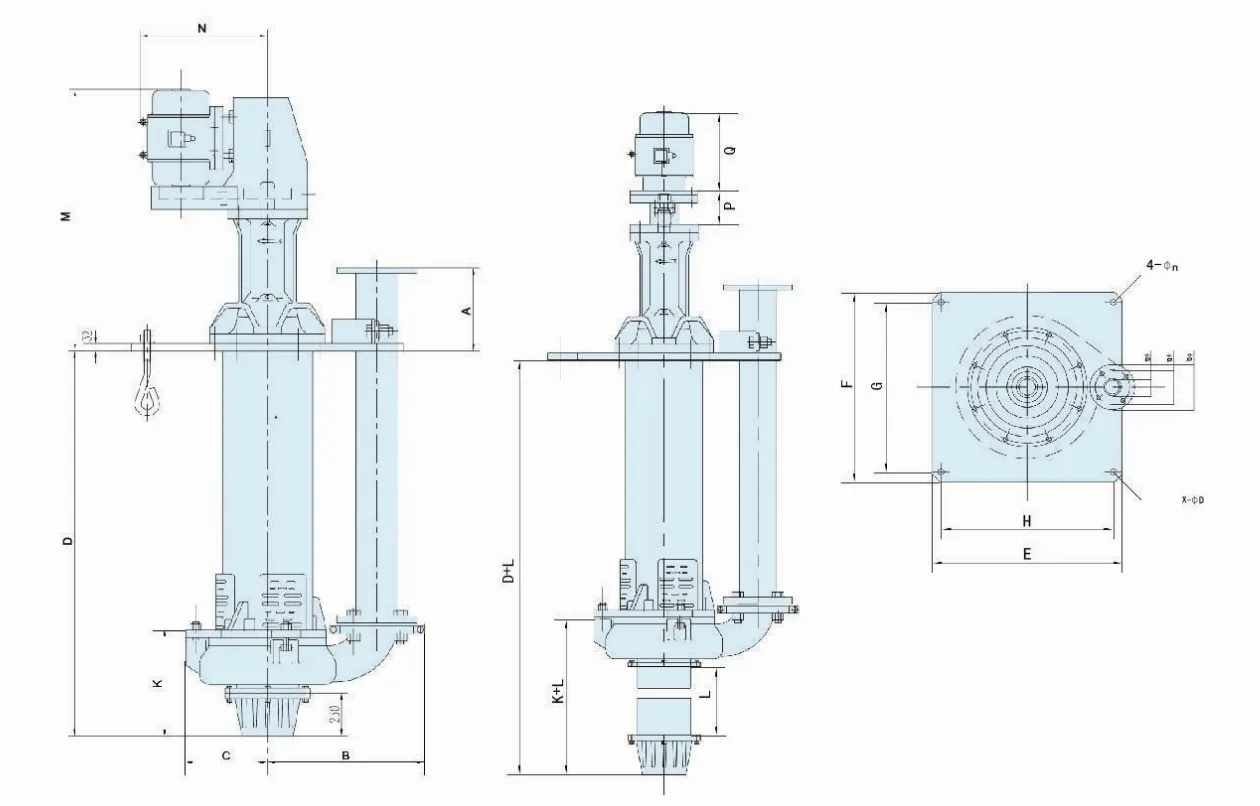

Outline and Installation Dimension of Type DV(R) Sump Pump


Pump A B C D E F G H J Φn K M N P Q Weight (kg) S Discharge Flange Dimension
Discharge Dia.(mm) Base Type Standard Type Extension Type
ΦD1 ΦD2 ΦD0 X-Φd
40 P(L) DV 137 285 153 900 * 1200 1800 * 2500 500 500 450 450 205 18 174 1113 675 248 629 285 280 127 40 98 4-Φ16
DVR 140 265 175
65 Q(L) DV 227 399 231 900 * 1200 * 1500 1800 * 20002500 680 680 620 285 400 18 393 1390 1020 290 681 432 350 178 65 140 4-Φ19
DVR 230 380 260 1396
100 R(L) DV 265 538 317 12001500 * 180020002400 24002700 * 30003200 1000 870 800 930 400 22 393 1803 1020 416 960 876 350 229 100 191 8-Φ19
DVR 266 535 332 1809
150 S(V) DV 390 670 365 12001500 * 1800 2800 * 320034003600 1100 1100 1030 1030 500 28 475 2186 1200 476 1011 1737 350 280 150 241 8-Φ22
DVR 395 670 400 2194
200 S(L) DV 450 805 440 12001500 * 1800 2800 * 32003600 1300 1200 1100 1200 600 28 550 2191 1300 476 1011 2800 350 343 200 298 8-Φ22
          2191
250 T(L) DV 500 930 470 18002100 * 2400 2800 * 32003600 1750 1450 1350 2650 700 48 685 2572 1750 561 1246 3700 400 406 250 362 12-Φ25
DVR         2572
300 DV 500 1170 559 180021002400 2800 * 32003600 1750 1450 1350 700 700 48 700 2476 1750 561 1246 4500 400 483 300 432 12-Φ25
DVR 400 1090 630     2832
Note: L size: 0, 300, 600, 900,1200, 1800, Standard Pump: L=0. The dimension range from the filter to the bottom of the pool:300-500mm.

Feature

The pumps are vertical cantilever type, single casing, double suction and semi-open impeller design, the impeller is made of high-chromium alloy or rubber, the space may be adjusted between impeller and liner, so that assure the high-efficient operation, the pumps don't need any shaft seal, the wetted parts of pumps are made of rubber and the parts contacting slurry are lined with rubber, the pumps are suitable to delivering strong corrosives slurries. The pumps may be driven by a belt or a direct coupling. The pump should be rotated clockwise, viewing from the driving end.



Application

The pumps are designed for delivering corrosive, coarse particle, and high-density slurries. The pumps are widely used for metallurgy, mining, coal, power plants, building materials, and environmental protection industrial departments, etc.



Model Implication



Selection Chart of Type DV(R) Sump Pump





Performance Parameter of Type DV(R) Sump Pump

Type Allowable Mating Max.Power (kW) Material Clean Water Performance Impeller
LinerImpeller Capacity (Q) Head(H) Speed (n) Max.Eff. No. of Vanes ImpellerDia(mm)
(m3/h) (l/s) (m) (r/min) (%)
40(L)DV 15 M M 19~43 5.3~12 4.5~28.5 1000~2200 40 5 188
40(L)DVR R R 18~40 5~11 4~26 1000~2200 40 5 188
65(L)DV 30 M M 23~111 6.4~30.8 5~29.5 700~1500 50 5 280
65(L)DVR R R 23~105 6.4~29 5.5~30.5 500~1200 51 5 280
100(L)DV 75 M M 54~289 15~80 5~35 600~1200 56 5 370
100(L)DVR R R 65~285 18~79 7.5~36 600~1200 62 5 370
150(L)DV 110 M M 108~480 30~133 8.5~40 500~1000 52 5 450
200(L)DV M M 189~891 52.5~247.5 6.5~37 400~850 64 5 520
250(L)DV 200 M M 261~1089 72.5~302.5 7.5~33 400~750 60 5 575
300(L)DV M M 288~1267 80~352 6.5~33 350~700 50 5 610
Note:1. "M": alloy wear-resistant material, "RU": rubber. "L": Extension Type.



Outline and Installation Dimension of Type DV(R) Sump Pump


Pump A B C D E F G H J Φn K M N P Q Weight (kg) S Discharge Flange Dimension
Discharge Dia.(mm) Base Type Standard Type Extension Type
ΦD1 ΦD2 ΦD0 X-Φd
40 P(L) DV 137 285 153 900 * 1200 1800 * 2500 500 500 450 450 205 18 174 1113 675 248 629 285 280 127 40 98 4-Φ16
DVR 140 265 175
65 Q(L) DV 227 399 231 900 * 1200 * 1500 1800 * 20002500 680 680 620 285 400 18 393 1390 1020 290 681 432 350 178 65 140 4-Φ19
DVR 230 380 260 1396
100 R(L) DV 265 538 317 12001500 * 180020002400 24002700 * 30003200 1000 870 800 930 400 22 393 1803 1020 416 960 876 350 229 100 191 8-Φ19
DVR 266 535 332 1809
150 S(V) DV 390 670 365 12001500 * 1800 2800 * 320034003600 1100 1100 1030 1030 500 28 475 2186 1200 476 1011 1737 350 280 150 241 8-Φ22
DVR 395 670 400 2194
200 S(L) DV 450 805 440 12001500 * 1800 2800 * 32003600 1300 1200 1100 1200 600 28 550 2191 1300 476 1011 2800 350 343 200 298 8-Φ22
          2191
250 T(L) DV 500 930 470 18002100 * 2400 2800 * 32003600 1750 1450 1350 2650 700 48 685 2572 1750 561 1246 3700 400 406 250 362 12-Φ25
DVR         2572
300 DV 500 1170 559 180021002400 2800 * 32003600 1750 1450 1350 700 700 48 700 2476 1750 561 1246 4500 400 483 300 432 12-Φ25
DVR 400 1090 630     2832
Note: L size: 0, 300, 600, 900,1200, 1800, Standard Pump: L=0. The dimension range from the filter to the bottom of the pool:300-500mm.
