Mill Underflow Pump
DMC(R) Series Mill Underflow Pump
Main Parameter:
Suction Dia.: 350-850mm
Capacity: 1000-30000m3 /h
Head: 10-55m
Main Parameter:
Suction Dia.: 350-850mm
Capacity: 1000-30000m3 /h
Head: 10-55m
Previous: No more data
Next: No more data
Product Details
Product Overview

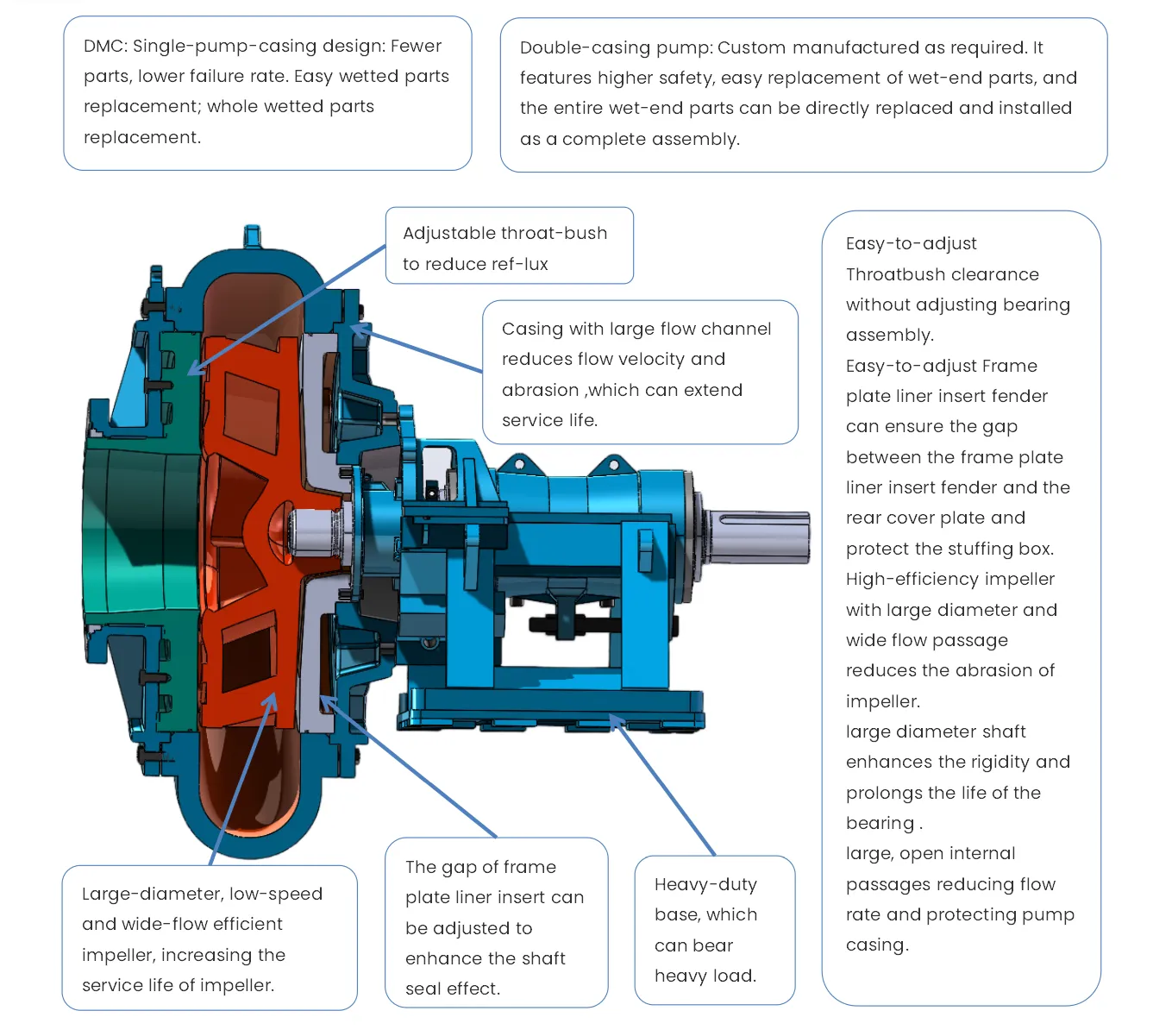

The DMC series Mill circuit duty slurry pump developed by Delin is a single-stage, single-suction horizontal centrifugal pump. It is applicable for feeding mine cyclones and can be widely used in industries, such like tailings transportation, coal handling and dredging, etc. It has the characteristics of large flowrate, wide flow channel, it offers a broad flow range for the same model, ensuring high efficiency and energy conservation. With a compact structure. Key technical highlights include impellers with large diameters, low rotation speeds for high efficiency; pump casings with wide flow passage and low flow velocities; cover and frame plate liner inserts with adjustable clearances; stuffing boxes are easy for assembly and disassembly; pump head can be assembled as a whole, customized designs; and availability of various material options to suit different working conditions.
Features
● Large diameter, low speed and high efficiency impeller
● Wide flow passage and low flow velocity casing
● Cover and frame plate liner inserts with adjustable clearances
● Stuffing boxes easy for assembly and disassembly
● Pump head can be assembled as a whole
● Customized designs
● Various material options

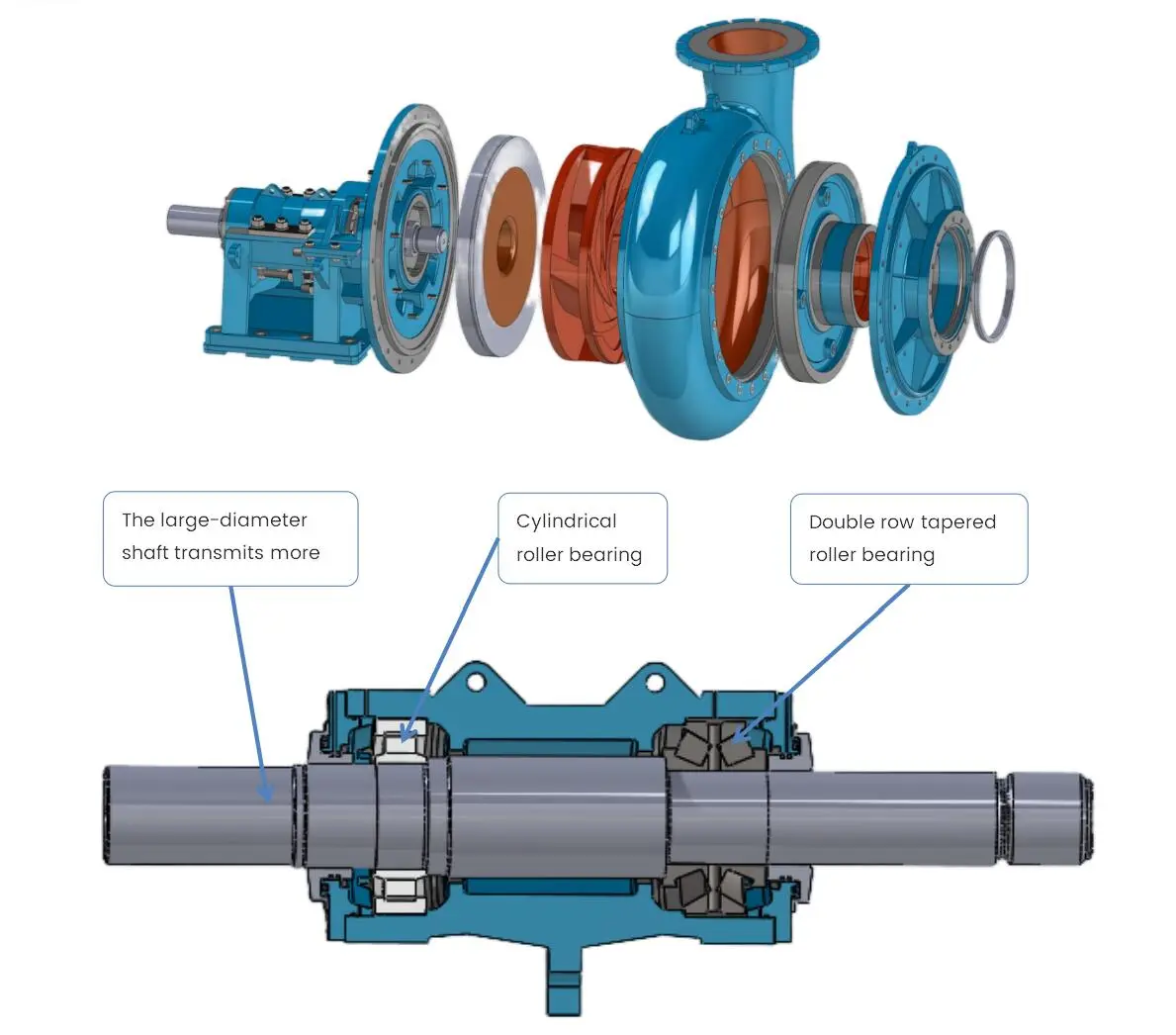

This structure is generally selected for bearing assembly smaller than 2000 kW.
The driving end is composed of one or two cylindrical roller bearings, and the impeller end is composed of a double-row tapered roller bearing, which bears axial force. Lubrication methods are grease lubrication or oil lubrication.

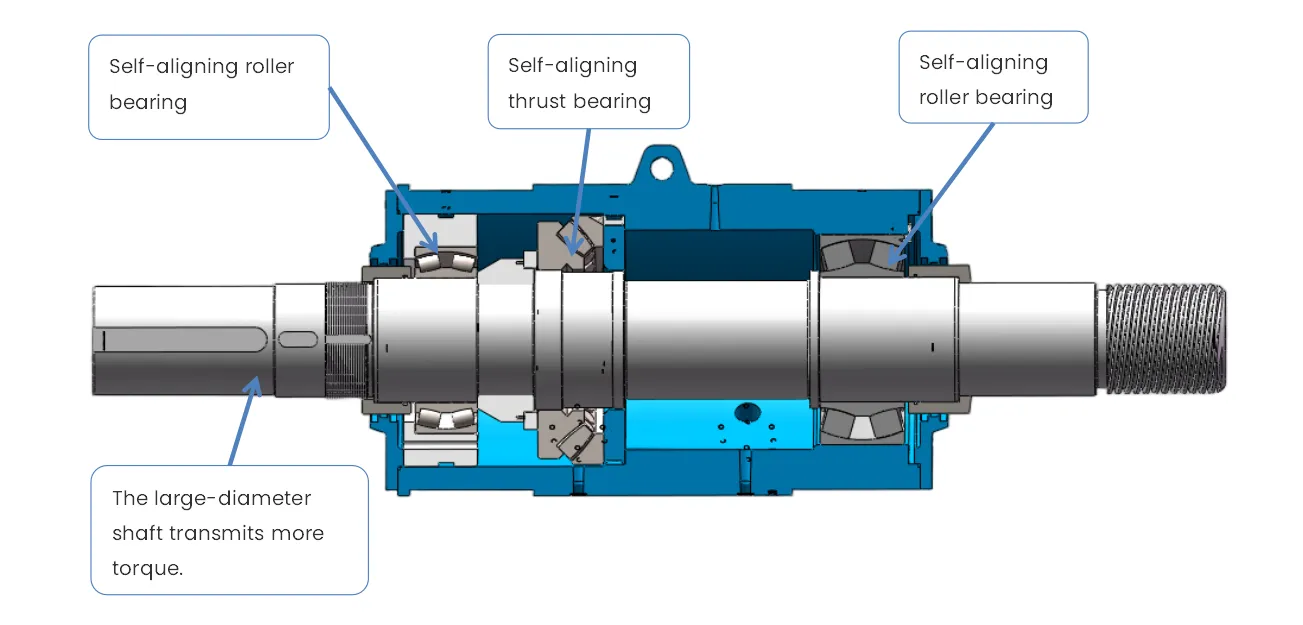

For a general structure larger than 2000KW Bearing assembly, the thrust bearing bears the axial force. Lubrication is forced oil lubrication.
When the bearing capacity is relatively large, a three-disk bearings are adopted, in which the self-aligning thrust bearing is only used to bear the axial force, not the radial force. Lubrication can adopt forced lubrication or an external cooling system.
|

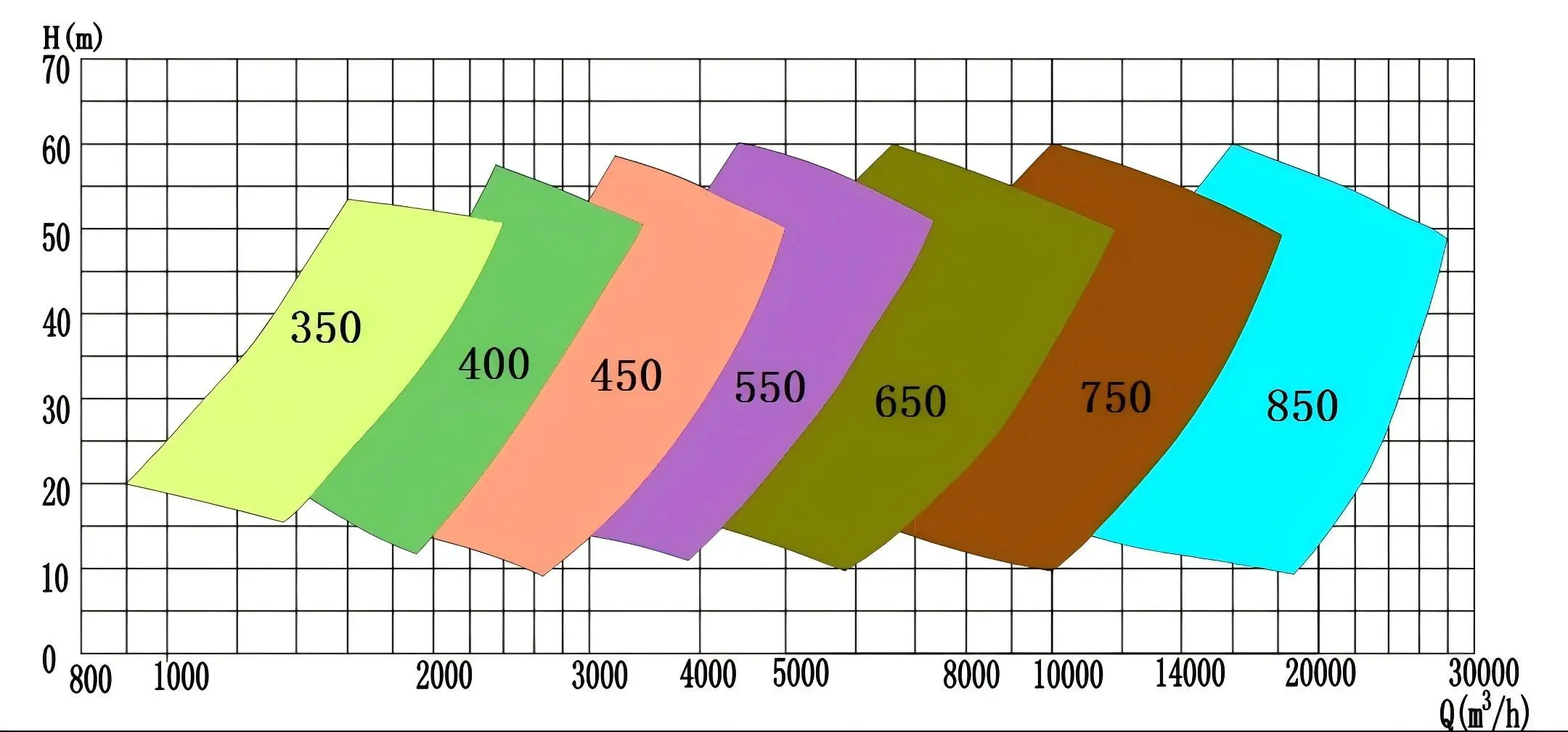

DMC Section Chart *Quick selection chart approximates clear water performance and to be used for preliminary selection only. If need exact selection, please contact Delin.
|
Product Overview
The DMC series Mill circuit duty slurry pump developed by Delin is a single-stage, single-suction horizontal centrifugal pump. It is applicable for feeding mine cyclones and can be widely used in industries, such like tailings transportation, coal handling and dredging, etc. It has the characteristics of large flowrate, wide flow channel, it offers a broad flow range for the same model, ensuring high efficiency and energy conservation. With a compact structure. Key technical highlights include impellers with large diameters, low rotation speeds for high efficiency; pump casings with wide flow passage and low flow velocities; cover and frame plate liner inserts with adjustable clearances; stuffing boxes are easy for assembly and disassembly; pump head can be assembled as a whole, customized designs; and availability of various material options to suit different working conditions.
Features
● Large diameter, low speed and high efficiency impeller
● Wide flow passage and low flow velocity casing
● Cover and frame plate liner inserts with adjustable clearances
● Stuffing boxes easy for assembly and disassembly
● Pump head can be assembled as a whole
● Customized designs
● Various material options
This structure is generally selected for bearing assembly smaller than 2000 kW.
The driving end is composed of one or two cylindrical roller bearings, and the impeller end is composed of a double-row tapered roller bearing, which bears axial force. Lubrication methods are grease lubrication or oil lubrication.
For a general structure larger than 2000KW Bearing assembly, the thrust bearing bears the axial force. Lubrication is forced oil lubrication.
When the bearing capacity is relatively large, a three-disk bearings are adopted, in which the self-aligning thrust bearing is only used to bear the axial force, not the radial force. Lubrication can adopt forced lubrication or an external cooling system.
|
DMC Section Chart *Quick selection chart approximates clear water performance and to be used for preliminary selection only. If need exact selection, please contact Delin.
|
