Foam Pump

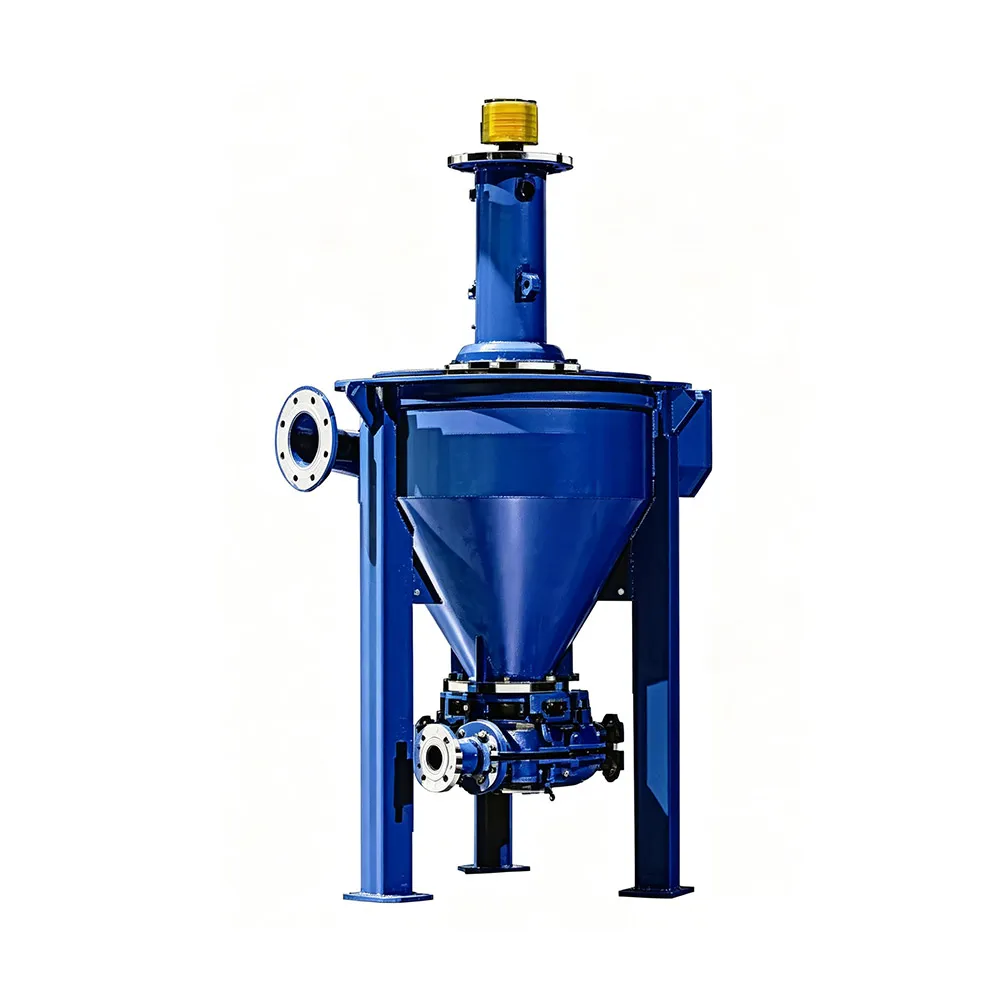

DF(DHF) Series Foam Pump

Main Parameter:

Diameter: 25~650mm

Capacity: 2 ~ 13860m3/h

Head: 10~60m

Main Parameter:

Diameter: 25~650mm

Capacity: 2 ~ 13860m3/h

Head: 10~60m

Previous: No more data
Product Details

Feature

According to mode of construction, the pumps are classified into vertical type and horizontal type pumps, use of double casing. It has the character of high efficiency, wear-resistance, stable performance and excellent changeable parts. The material of liner and impeller is wear-resistant metal or rubber. The vertical type pumps do not need seal, the work bin lines with rubber; the horizontal type pumps may delivers the slurries of more flow and higher head with small installation volumes. The pumps may be driven by belt or direct coupling.Pump should be rotated clockwise viewing form the driving end.



Application

Used for the flotation technology, this pump is ideal type of pump for delivering foaming slurries.

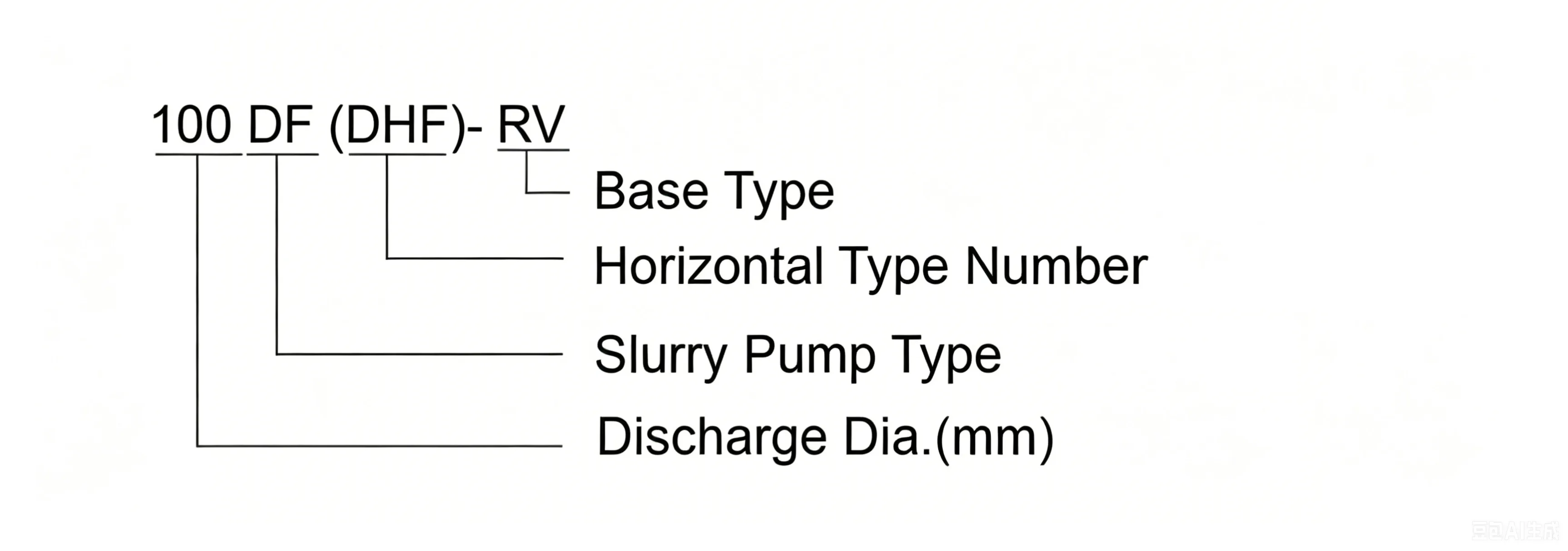

Model Implication



Section Chart of DF(DHF) Type Froth Pump

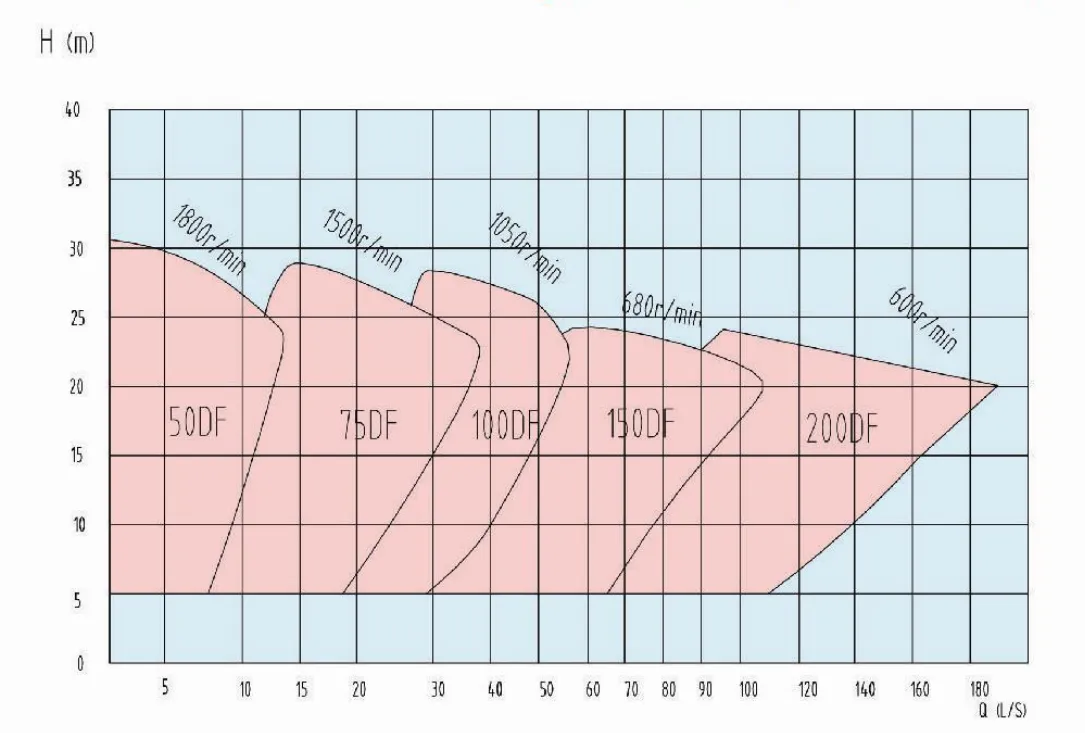

Performance Parameter of DF(DHF) Type Froth Pump

Type Capacity (Q) Head (H) Speed (n) Max. Eff. Max.Dia. of Flowed Particle Allowable Mating Max.Power
(m3/h) (l/s) (m) (r/min) (%) (mm) (kW)
50DF 4.3~51 1.2~14.2 6.2~30.2 800~1800 20~45 35 15
75DF 10.8~149.4 3~41.5 6.5~29.5 700~1500 20~55 38 20
100DF 10.8~212 3~59 6.8~29.2 500~1050 20~55 55 40
150DF 36~425 10~118 6.8~25.2 350~680 20~55 63 75
200DF 230~670 64~186 5~24.8 350~680 20~55 72 75

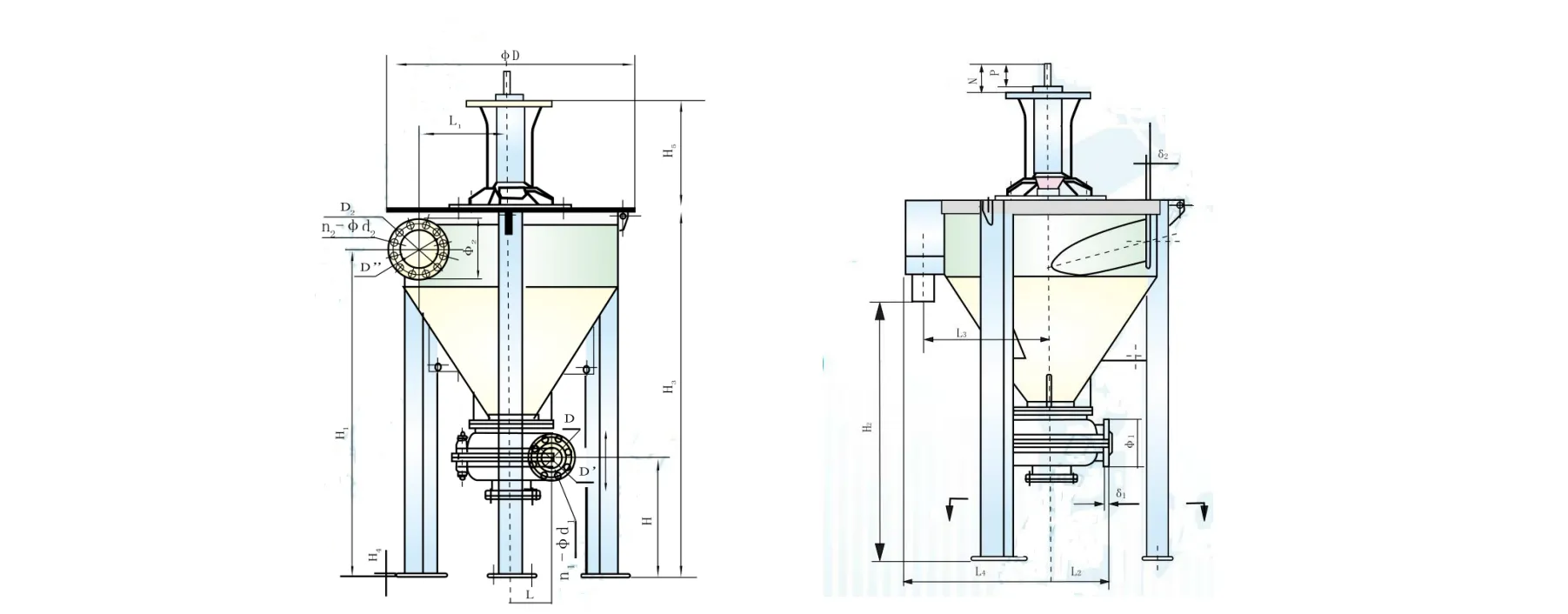

Outline and Installation Dimension of DF(DHF) Type Froth Pump


Type Outline Dimension(mm)
H H1 H2 H3 H4 H5 L L1 L2 L3 L4 ΦD N P
50DF 382 1140 850 1300 12 474 138 360 210 480 380 938 174 110
75DF 467 1250 950 1400 12 474 149 354 262 510 445 938 174 110
100DF 506 1720 1310 1910 16 637 229 537 338 740 600 1444 238 170
150DF 791 2430 1950 2770 20 875 318 696 460 1020 800 1970 300 210
200DF 791 2430 1950 2770 20 875 381 696 470 1020 800 1970 300 210



Type Discharge Flange Dimension(mm) Intake Flange Dimension(mm)
D1 D' Φ1 n1 Φd1 δ₁ D2 D" Φ2 n2 Φd2 δ₂
50DF 51 146 184 4 19 25 102 178 216 4 19 12
75DF 76 191 229 4 22 27 152 235 279 8 18 16
100DF 102 235 279 4 22 32 203 292 337 8 19 12
150DF 152 324 365 8 21 38 305 406 457 12 22 20
200DF 203 375 432 8 29 44 305 406 457 12 22 20

Feature

According to mode of construction, the pumps are classified into vertical type and horizontal type pumps, use of double casing. It has the character of high efficiency, wear-resistance, stable performance and excellent changeable parts. The material of liner and impeller is wear-resistant metal or rubber. The vertical type pumps do not need seal, the work bin lines with rubber; the horizontal type pumps may delivers the slurries of more flow and higher head with small installation volumes. The pumps may be driven by belt or direct coupling.Pump should be rotated clockwise viewing form the driving end.



Application

Used for the flotation technology, this pump is ideal type of pump for delivering foaming slurries.



Model Implication



Section Chart of DF(DHF) Type Froth Pump





Performance Parameter of DF(DHF) Type Froth Pump

Type Capacity (Q) Head (H) Speed (n) Max. Eff. Max.Dia. of Flowed Particle Allowable Mating Max.Power
(m3/h) (l/s) (m) (r/min) (%) (mm) (kW)
50DF 4.3~51 1.2~14.2 6.2~30.2 800~1800 20~45 35 15
75DF 10.8~149.4 3~41.5 6.5~29.5 700~1500 20~55 38 20
100DF 10.8~212 3~59 6.8~29.2 500~1050 20~55 55 40
150DF 36~425 10~118 6.8~25.2 350~680 20~55 63 75
200DF 230~670 64~186 5~24.8 350~680 20~55 72 75

Outline and Installation Dimension of DF(DHF) Type Froth Pump


Type Outline Dimension(mm)
H H1 H2 H3 H4 H5 L L1 L2 L3 L4 ΦD N P
50DF 382 1140 850 1300 12 474 138 360 210 480 380 938 174 110
75DF 467 1250 950 1400 12 474 149 354 262 510 445 938 174 110
100DF 506 1720 1310 1910 16 637 229 537 338 740 600 1444 238 170
150DF 791 2430 1950 2770 20 875 318 696 460 1020 800 1970 300 210
200DF 791 2430 1950 2770 20 875 381 696 470 1020 800 1970 300 210



Type Discharge Flange Dimension(mm) Intake Flange Dimension(mm)
D1 D' Φ1 n1 Φd1 δ₁ D2 D" Φ2 n2 Φd2 δ₂
50DF 51 146 184 4 19 25 102 178 216 4 19 12
75DF 76 191 229 4 22 27 152 235 279 8 18 16
100DF 102 235 279 4 22 32 203 292 337 8 19 12
150DF 152 324 365 8 21 38 305 406 457 12 22 20
200DF 203 375 432 8 29 44 305 406 457 12 22 20
